How-to Request: Hella 500 Switch Install?
Okay, I have a serious need for help, because i have *No Idea what im doing.

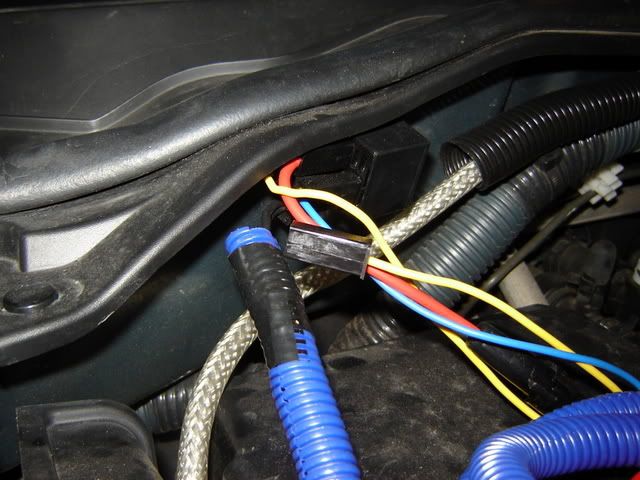

Here is what im working with. The lights are connected and grounded and I have all the wires hooked up to the relay. Red=power. Blue=ground. Blue covered wire (black)= to both lights. Yellow=to switch
![]()
Now, this is my predicament. The switch that i am using isnt the factory one, its a rocker switch. here is a pic of both....
FACTORY:
![]()
REPLACEMENT SWITCH:
![]()
Here is a diagram of the new switch.
![]()
Remember it is a Four Prong switch not six (even though the diagram shows six)
**This is my question: Where does the Yellow wire connect to (from the relay) and what other wires do i run (I assume that i only run three since the original switch had only three connections. And i would like for these lights to run totally independent of my driving lights.
Sorry for the long post but i need help!! Thanks in advance.
Here is what im working with. The lights are connected and grounded and I have all the wires hooked up to the relay. Red=power. Blue=ground. Blue covered wire (black)= to both lights. Yellow=to switch
Now, this is my predicament. The switch that i am using isnt the factory one, its a rocker switch. here is a pic of both....
FACTORY:
REPLACEMENT SWITCH:
Here is a diagram of the new switch.
Remember it is a Four Prong switch not six (even though the diagram shows six)
**This is my question: Where does the Yellow wire connect to (from the relay) and what other wires do i run (I assume that i only run three since the original switch had only three connections. And i would like for these lights to run totally independent of my driving lights.
Sorry for the long post but i need help!! Thanks in advance.
